PIEZOELECTRIC SEALED RESONATOR RК542 (МN)

PIEZOELECTRIC SEALED RESONATOR RК542 (МN)

Piezoelectric sealed resonator manufactured as per KPGF.433513.064 TU (МN package)

Basic parameters

  • Nominal frequency range, MHz 4 to 400
  • LWH, mm 7,2х2,8х7
  • Interconnection technique THT (Through-Hole Technology)
  • Quality category “QCD”

Number and pin assignment

  • 1, 2 Resonator pad
close

Item added to cart

Overrall dimensions

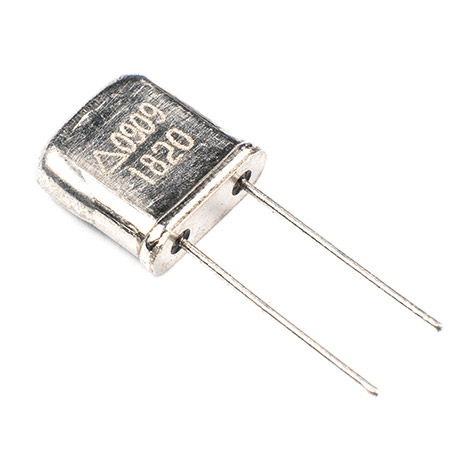

Appearance

RK542-MN - Dimensions
RK542-MN
close RK542-MN

Model identification code: RK542-MN-6AP-30M3 KPGF.433513.064 TU

Resonator type RК542
Package type МN
Adjustment accuracy 6
Operating temperature range А
Max. relative change of the operating frequency under operating temperature range П
Nominal frequency, MHz 30М
Overtone order 3

Adjustment accuracy at set-up temperature (25±5)˚С, х10-6

± 5 (4)
± 10 (5)
± 15 (6)
± 20 (7)
± 30 (8)
± 50 (9)
± 75 (10)
± 100 (11)

Impact resistance to external factors action

Mechanical impact resistance M6 Group, GOST 23546
Climatic impact resistance UKhL 1.1 and В4 cat. GOST 23546
Failure rate under normal climatic conditions within runtime of 50 000 h, greater than 2х10-7
γ-percentile storageability time – min. 25 years at γ = 95 %

Notes:

1. Параметры резонаторов могут быть изменены под конкретные требования Заказчика. 2. Выводы резонаторов в корпусах МН, МР, ММ облужены, в корпусах МИ1, МИ5, МИ4 позолочены.

Electrical parameter

Nominal frequency range, MHz Overtone order Dynamic resistance at set-up temperature, Ohm, max
4 to 6 incl. 1 (not specified) 200
6 » 7 » 120
» 7 » 10 » 60
» 10 » 17 » 40
» 17 » 45 » 25
30 to 105 incl. 3 50
75 to 400 incl. 5 70

Max. relative change of the operating frequency under operating temperature range, х10-6

Operating temperature range, ˚С Max. relative change of the operating frequency under operating temperature range, х10-6
± 2,5
(Zh)		 ± 3
(I)		 ± 5
(K)		 ± 7,5
(L)		 ± 10
(M)		 ± 15
(N)		 ± 20
(P)		 ± 25
(R)		 ± 30
(S)		 ± 40
(T)		 ± 50
(U)
0…+45 (L) + + + + + + + + + + +
0…+50 (M) + + + + + + + + + + +
-10…+60 (A) - + + + + + + + + + +
-20 …+70 (P) - - + + + + + + + + +
-25…+55 (R) - - + + + + + + + + +
-30…+60 (B) - - - + + + + + + + +
-40…+55 (V1) - - - - + + + + + + +
-40…+70 (V) - - - - - + + + + + +
-40…+85 (S) - - - - - + + + + + +
-60…+70 (G) - - - - - + + + + + +
-60…+85 (D) - - - - - + + + + + +
