PIEZOELECTRIC SEALED RESONATOR RK440

Piezoelectric sealed resonator manufactured as per KPGF.433513.003 TU (МI5 package)

Basic parameters

Nominal frequency range, MHz 7 - 165
LWH, mm 7,8х3,2х6
Type of mounting THT (Through-Hole Technology)
Quality category QCD (Quality Control Dept)

Number and pin assignment

1, 2 Resonator pad

Item added to cart

Overrall dimensions

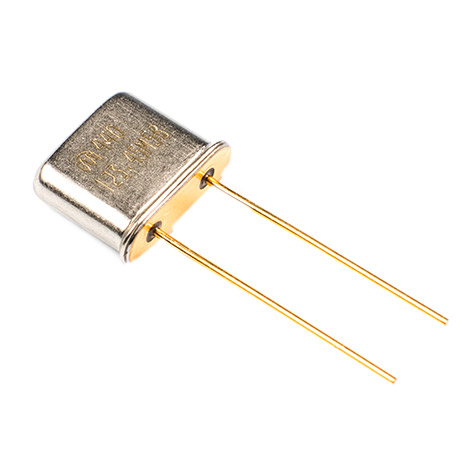

Appearance

Model identification code: RK440МI5-6АP-30М3-V KPGF.433513.003 TU

Resonator type	RK440
Package type	МI5
Calibration tolerance	6
Operating temperature range	А
Temperature stability	P
Nominal frequency, MHz	30М
Overtone order	3
All-climate type (for Customer’s requirements)	В

Calibration tolerance, х10^-6

± 5	(4)
± 10	(5)
± 15	(6)
± 20	(7)
± 30	(8)
± 50	(9)

Impact resistance to external factors action

Parameter	Value
Mechanical impact resistance	M6 Group, GOST 23546
Climatic impact resistance	UKhL 1.1 and В4 cat. GOST 23546
Failure rate under normal climatic conditions within runtime of 50 000 h	greater than 2х10^-7
γ-percentile storageability time – min. 25 years at γ = 95 %.

Notes:

1. Resonator parameters can be modified to meet Customer’s specific requirements. 2. Resonators may have parallel resonance frequency feature with load capacitance for Customer’s requirements. 3. Resonator pads are gold-plated.

Electrical parameter

Nominal frequency range, MHz	Overtone order	Dynamic resistance, Ohm, max
7 – 9.9999 incl.	1 (not specified)	60
10 - 17 incl.		40
17 - 45 incl.		25
30 - 105 incl.	3	50
75 - 165 incl.	5	70

Temperature stability

Operating temperature range, ˚С

Temperature stability, х10^-6

± 2,5 (Zh)

± 3 (I)

± 5 (К)

± 7,5 (L)

± 10 (М)

± 15 (N)

± 20 (P)

± 25 (R)

± 30 (S)

± 40 (Т)

± 50 (U)

± 100 (Kh)

0…+45 (L)

0…+50 (М)

-10…+60 (А)

-25…+55 (R)

-30…+60 (B)

-40…+70 (V)

-40…+55 (V1)

-50…+80 (G2)

-60…+85 (D)
