PIEZOELECTRIC SEALED RESONATOR RK419R
Piezoelectric sealed resonator manufactured as per KZhDG.433513.011 TU-D3
Basic parameters
Number and pin assignment

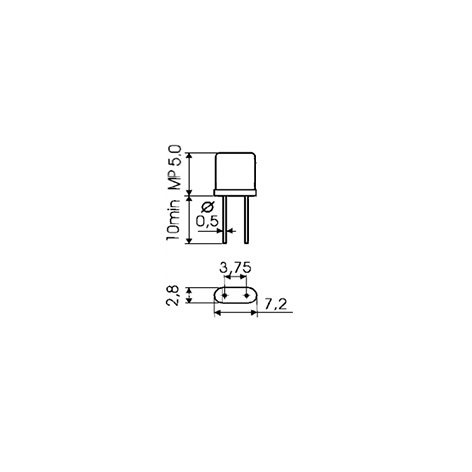

Overrall dimensions
Appearance
.jpg)
Model identification code: RK419R-10000К KZHDG.433513.011 TU-D3
| Resonator type | RK419R |
| Nominal frequency, kHz | 10000К |
Calibration tolerance, х10-6
| Calibration tolerance, х10-6 | ± 50 |
Impact resistance to external factors action
| Impact resistance to external factors action | M6 Group, GOST 23546 |
| Climatic impact resistance | UKhL 1.1 and В4 cat. GOST 23546 |
| Failure rate under normal climatic conditions within runtime of 50 000 h, | greater than 2х10-7 |
| γ-percentile storageability time – min. 25 years at γ = 95 % |
Notes:
1. Resonator parameters can be modified to meet Customer’s specific requirements. 2. Resonator pads are tinned.
Electrical parameter
| Nominal frequency range, kHz | Overtone order | Dynamic resistance, Ohm, max |
| 9 500 to 13 000 | 1 | 50 |
Temperature stability
| Operating temperature range, ˚С | Temperature stability, х10-6 |
| -40…+125 | ± 100 |
Piezoelectric resonator
