PIEZOELECTRIC SEALED RESONATOR RК418S
Piezoelectric sealed resonator manufactured as per KZhDG.433513.011 TU-D1
Basic parameters
Number and pin assignment

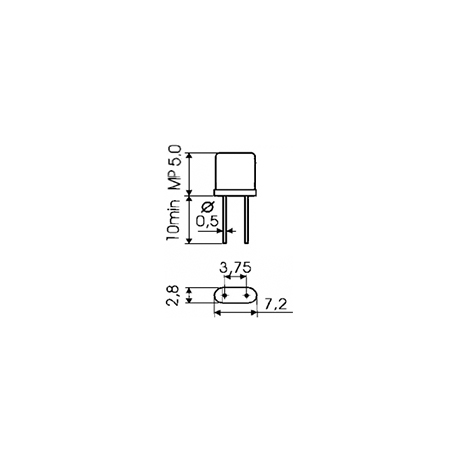

Overrall dimensions

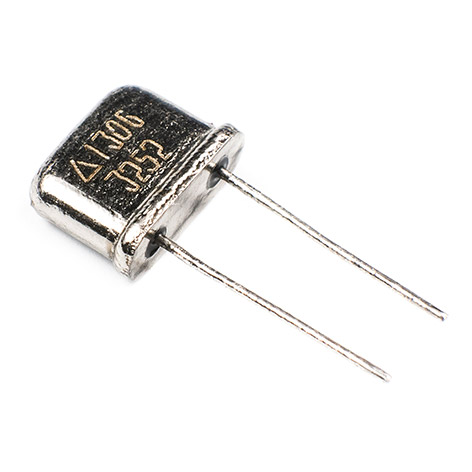

Appearance
Model identification code: RK418S-10000K KZhDG.433513.011 TU-D1
| Resonator type | RK418S |
| Nominal frequency, kHz | 10000K |
Calibration tolerance, х10-6
| ± 15 | (6) |
| ± 20 | (7) |
| ± 30 | (8) |
Impact resistance to external factors action
| Impact resistance to external factors action | M6 Group, GOST 23546 |
| Climatic impact resistance | UKhL 1.1 and В4 cat. GOST 23546 |
| Failure rate under normal climatic conditions within runtime of 50 000 h. | greater than 2х10-7 |
| γ-percentile storageability time – min. 25 years at γ = 95 % |
Notes:
1. Resonator parameters can be modified to meet Customer’s specific requirements. 2. Resonator pads are tinned.
Electrical parameter
| Nominal frequency range, MHz | Overtone order | Dynamic resistance, Ohm, max |
| 9 990 to 10 010 | 1 | 40 |
| 12 790 to 12 810 |
Temperature stability
| Operating temperature range, ˚С | Temperature stability, х10-6 | |||
| (-40±3)˚С | (+10±3)˚С | (+40±3)˚С | (+70±3)˚С | |
| -40…+70 | -7,5…+50 | -1,0…-6,0 | 1,0…8,0 | 6,0…26,0 |
