VOLTAGE CONTROLLED PIEZOELECTRIC CRYSTAL OSCILLATOR GK383-UN-02

VOLTAGE CONTROLLED PIEZOELECTRIC CRYSTAL OSCILLATOR GK383-UN-02

Voltage controlled piezoelectric crystal oscillator GK383-UN-02 manufactured as per KPGF.433533.076 TU (14.2x9.14x5.3 mm package)

Basic parameters

  • Nominal frequency range, MHz 2 - 800
  • LWH, mm 14,2х9,14х5,3
  • Type of mounting SMD (Surface mounted device / Surface mounting)
  • Waveform CMOS
  • Quality category QCD (Quality Control Dept)

Number and pin assignment

  • 1 Control voltage
  • 2 General
  • 3 Output
  • 4 Power supply
close

Item added to cart

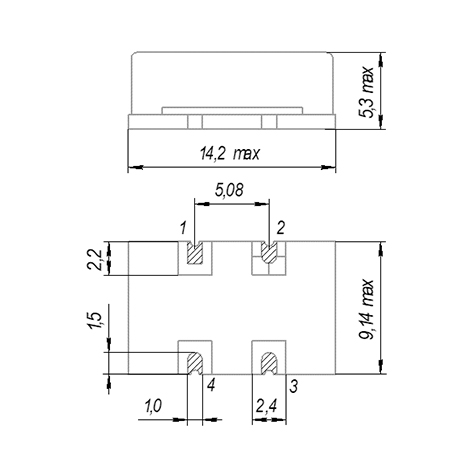

Overrall dimensions

Appearance

GK383-UN-02 - Dimensions
GK383-UN-02
close GK383-UN-02

Model identification code: GK383-UN-02-7-15GR-100М-5 KPGF.433533.076 TU

Oscillator type GK383-UN-02
Frequency tuning 7
Calibration tolerance 15
Operating temperature range G
Temperature stability R
Nominal frequency, MHz 100М
Supply voltage 5

Electrical parameter

Parameter Value
Nominal frequency range, MHz
Сн = 15 pF 2 - 300
Сн = 2 pF 300 - 800
Output CMOS
Output parameters:
Logic ‘1’, V min. 0,9 Us
Logic ‘0’, V max. 0,1 Us
Pulse ratio, % max 50 ± 5
Rise/fall time, ns, max 3
Load capacitance, pF 2 ± 20 %; 15 ± 20 %;
Control voltage, V 0…Us
Supply voltage, V 3,3 ± 5%; 5,0 ± 5%;
Control nonlinearity, % (min) ± 10
Spectral density of phase noise at 10 kHz offset, dB/Hz, max -110…-150
Supply current, mA, max 40

Frequency tuning, х10-6

± 20 (1)
± 50 (2)
± 80 (3)
± 100 (4)
± 120 (5)
± 150 (6)
± 180 (7)
± 200 (8)
± 250 (9)
± 300 (10)
± 500 (11)
± 750 (12)
± 1 000 (13)
± 1 250 (14)
± 26 000 (15)

Calibration tolerance, х10-6

± 5 (11)
± 7,5 (12)
± 10 (13)
± 15 (14)
± 20 (15)
± 30 (16)
± 50 (20)

Impact resistance to external factors action

Parameter Value
Mechanical impact resistance М6 Group, GOST 25467
Climatic impact resistance UKhL 1.1 cat., GOST 25467
γ-percentile time to failure at γ = 95 % under standard operating conditions (at ambient temperature of 85 °С) for min. 20 000 h within 15 years of service life
γ-percentile storageability time – min. 15 years with γ = 95 %

Notes:

Specifications can be modified to meet Customer’s specific requirements.

Temperature stability

Operating temperature range, ˚С Temperature stability , х10-6
± 5
(Zh)		 ± 10
(I)		 ± 15
(K)		 ± 20
(L)		 ± 25
(M)		 ± 30
(N)		 ± 40
(P)		 ± 50
(R)		 ± 80
(R1)		 ± 100
(S)		 ± 150
(S1)		 ± 200
(S2)
0…+50 (L) + + + + + + + + + + + +
0…+70 (K) + + + + + + + + + + + +
-10…+50 (M) + + + + + + + + + + + +
-10…+60 (A) + + + + + + + + + + + +
-10…+70 (N) - + + + + + + + + + + +
-30…+60 (E) - - + + + + + + + + + +
-30…+70 (P) - - + + + + + + + + + +
-30…+85 (R) - - + + + + + + + + + +
-40...+70 (B) - - - + + + + + + + + +
-40…+85 (S) - - - + + + + + + + + +
-50…+70 (V1) - - - - + + + + + + + +
-60…+70 (V) - - - - - - + + + + + +
-60…+85 (G) - - - - - - + + + + + +
