TEMPERATURE COMPENSATED PIEZOELECTRIC CRYSTAL OSCILLATOR GK367-TK-02

TEMPERATURE COMPENSATED PIEZOELECTRIC CRYSTAL OSCILLATOR GK367-TK-02

Temperature compensated piezoelectric crystal oscillator GK367-TK-02 manufactured as per KPGF.433531.074 TU, SMD7 package

Basic parameters

  • Nominal frequency range, MHz 5 - 50
  • LWH, mm 7х5х1,8
  • Interconnection technique SMD (Surface mounted device / Surface mounting)
  • Waveform CMOS
  • Quality category “QCD”

Number and pin assignment

  • 1 Disabled or «1» - On, «0» - Off
  • 2 General
  • 3 Output
  • 4 Power supply
close

Item added to cart

Overrall dimensions

Appearance

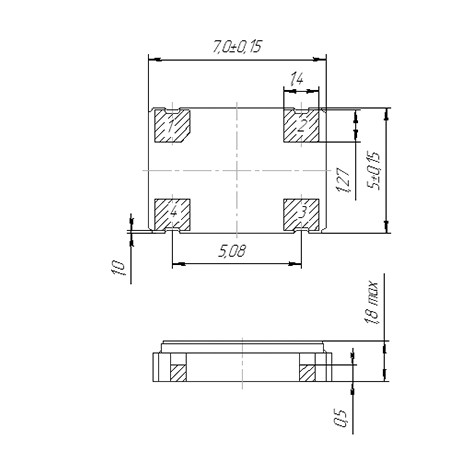

GK367-TK-02 - Dimensions
GK367-TK-02
close GK367-TK-02

Model identification code: GK367-TK-02-AG-30М-3.3С-B KPGF.433531.074 TU

Oscillator type GK367-TK-02
Operating temperature range А
Temperature instability of frequency within operating temperature range G
Nominal frequency, MHz 30М
Supply voltage, V 3,3
Relative frequency change B

Electrical parameter

Parameter Value
Nominal frequency range, MHz 5 - 50
Adjustment accuracy, х10-6 ± 1
Output parameters:
wave form CMOS
Logic ‘1’, V min. 0,9 Us
Logic ‘0’, V max. 0,1 Us
Pulse ratio, % max. 50 ± 5
Rise/fall time, ns, max 3
Spectral density of phase noise at 10 kHz offset, dB/Hz, max. -130
Supply voltage, V 2,7 ± 5 %; 3,0 ± 5 %; 3,3 ± 5 %; 5,0 ± 5 %;
Output voltage vs. load deviation ±20 %, ×10-6, max. ± 5
Load coefficient ± 20 %, ×10-6, max ± 0,2
Load capacitance 15±20% pF
Supply current, mA 4 - 24

Impact resistance to external factors action

Parameter Value
Mechanical impact resistance М6 Group, GOST 25467
Climatic impact resistance UKhL 2.1 cat., GOST 25467
Leak-proof construction
γ-percentile time to failure at γ = 95 % under standard operating conditions (at ambient temperature of 85 °С) for min. 20 000 h within 15 years of service life
γ-percentile storageability time – min. 15 years with γ = 95 %.

Notes:

Specifications can be modified to meet Customer’s specific requirements.

Relative frequency change

Configuration Relative frequency change, ×10-6, max.
1st year of operation Operating lifetime Storage
А ± 0,5 ± 2,0 ± 2,0
B ± 1,0 ± 3,0 ± 3,0
No sign ± 3,0 ± 5,0 ± 5,0

Temperature instability of frequency within operating temperature range, х10-6

Operating temperature range, ˚С Temperature instability of frequency within operating temperature range, х10-6
±0,3
(V3)		 ±0,5
(G)		 ±1,0
(D)		 ±1,5
(G1)		 ±2,0
(D1)		 ±2,5
(E)		 ±3,0
(E1)		 ±5,0
(Zh)
0…+50 (L) + + + + + + + +
0…+70 (К) + + + + + + + +
-10…+60 (А) + + + + + + + +
-30…+60 (Е) + + + + + + + +
-30…+70 (P) + + + + + + + +
-30…+85 (R) + + + + + + + +
-40…+70 (B) + + + + + + + +
-40…+85 (S) + + + + + + + +
-60…+85 (G) - - - - - - - +
