VOLTAGE CONTROLLED PIEZOELECTRIC CRYSTAL OSCILLATOR GK304-UN-L

VOLTAGE CONTROLLED PIEZOELECTRIC CRYSTAL OSCILLATOR GK304-UN-L

Voltage controlled piezoelectric crystal oscillator GK304-UN-L manufactured as per KPGF.433533.055 TU, SMD7 package

Basic parameters

  • Nominal frequency range, MHz 0,75 - 800
  • LWH, mm 7х5х1,8
  • Interconnection technique SMD (Surface mounted device / Surface mounting)
  • Waveform LVDS
  • Quality category “QCD”

Number and pin assignment

  • 1 Control voltage
  • 2 Disabled
  • 3 General
  • 4 Output
  • 5 Compl out
  • 6 Power supply
close

Item added to cart

Overrall dimensions

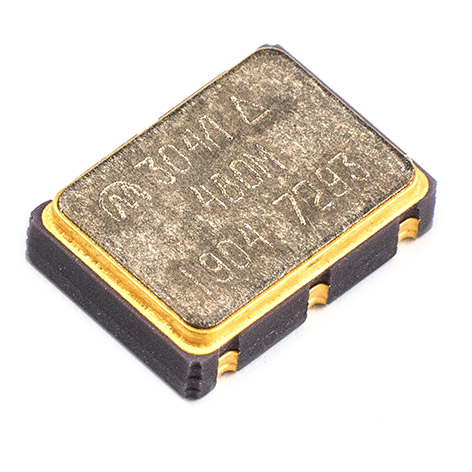

Appearance

GK304-UN-L - Dimensions
GK304-UN-L
close GK304-UN-L

Model identification code: GK304-UN-L-7-15GR-100М KPGF.433533.055 TU

Oscillator type GK304-UN-L
Frequency tuning 7
Adjustment accuracy 15
Operating temperature range G
Temperature instability of frequency within operating temperature range R
Nominal frequency, MHz 100М

Electrical parameter

Parameter Value
Nominal frequency range, MHz 0,75 - 800
Output LVDS
Output parameters:
Logic 1, V min. Us-1,95
Logic 0, V max. Us-2,25
Pulse ratio, % max 50 ± 10
Rise/fall time, ns, max 1,0
Diff. output voltage, mV, min 250
Phase jitter (for 12 kHz - 20 MHz frequency band), ps, max 5
Load capacitance, Ohm 100
Control voltage, V 0…Us
Supply voltage, V 3,3 ± 5%
Control nonlinearity, % (min) ± 10
Spectral density of phase noise at 10 kHz offset, dB/Hz, max -110...-150
Voltage coefficient ± 5 %, ×10-6, max ± 2
Supply current, mA, max.:
fnom ≤ 24 MHz 28
24 MHz < fnom ≤ 96 MHz 45
fnom > 96 MHz 80

Frequency tuning, х10-6

± 20 (1)
± 50 (2)
± 80 (3)
± 100 (4)
± 120 (5)
± 150 (6)
± 180 (7)
± 200 (8)
± 250 (9)
± 300 (10)

Adjustment accuracy, х10-6

± 5 (11)
± 7,5 (12)
± 10 (13)
± 15 (14)
± 20 (15)
± 30 (16)

Impact resistance to external factors action

Parameter Value
Mechanical impact resistance М6 Group, GOST 25467
Climatic impact resistance UKhL 1.1 cat., GOST 25467
Leak-proof construction
γ-percentile time to failure at γ = 95 % under standard operating conditions (at ambient temperature of 85 °С) for min. 25 000 h within 15 years of service life
γ-percentile storageability time – min. 15 years with γ = 95 %

Notes:

Specifications can be modified to meet Customer’s specific requirements.

Operating temperature range

Operating temperature range, ˚С Temperature instability of frequency within operating temperature range, х10-6
± 5 (Zh) ± 10 (I) ± 15 (К) ± 20 (L) ± 25 (М) ± 30 (N) ± 40 (P) ± 50 (R) ± 80 (R1)
0…+50 (L) + + + + + + + + +
0…+70 (К) + + + + + + + + +
-10…+50 (М) - + + + + + + + +
-10…+60 (А) - + + + + + + + +
-10…+70 (N) - + + + + + + + +
-30…+60 (Е) - - + + + + + + +
-30…+70 (P) - - + + + + + + +
-30…+85 (R) - - + + + + + + +
-40…+70 (B) - - + + + + + + +
-40…+85 (S) - - - + + + + + +
-60…+85 (G) - - - - - - + + +
