VOLTAGE CONTROLLED PIEZOELECTRIC CRYSTAL OSCILLATOR GK304-UN-03-S
Voltage controlled piezoelectric crystal oscillator GK304-UN-03-S manufactured as per KPGF.433533.055 TU, DIL-8 package
Basic parameters
Number and pin assignment

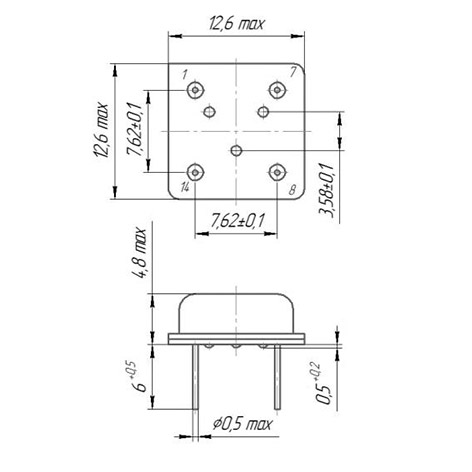

Overrall dimensions
Appearance
Model identification code: GK304-UN-03-S-7-15GR-A3-100М-5 KPGF.433533.055 TU
| Oscillator type | GK304-UN-03-S |
| Frequency tuning | 7 |
| Calibration tolerance | 15 |
| Operating temperature range | G |
| Temperature stability | R |
| Load resistance | А |
| Spurious resonance rejection | 3 |
| Nominal frequency, MHz | 100М |
| Supply voltage | 5 |
Electrical parameter
| Parameter | Value |
| Nominal frequency range, MHz | 2 - 1 700 |
| Output | Sine |
| Output parameters: | |
| Peak-to-peak voltage, V, min | 1,0 |
| Load output voltage (amplitude) V, min | |
| Rload = 50 Ohm | 0,2 |
| Rload = 1 kOhm | 0,35 |
| Rload = 5 kOhm | 0,5 |
| Control voltage, V | 0…Us |
| Supply voltage, V | 3,3 ± 5%; 5,0 ± 5% |
| Control nonlinearity, % (min) | ± 10 |
| Spectral density of phase noise at 10 kHz offset, dB/Hz, max | -110...-150 |
| Voltage coefficient ± 5 %, ×10-6, max | ± 5 |
| Supply current, mA, max | 40 |
Frequency tuning, х10-6
| ± 20 | (1) |
| ± 50 | (2) |
| ± 80 | (3) |
| ± 100 | (4) |
| ± 120 | (5) |
| ± 150 | (6) |
| ± 180 | (7) |
| ± 200 | (8) |
| ± 250 | (9) |
| ± 300 | (10) |
Calibration tolerance, х10-6
| ± 5 | (11) |
| ± 7,5 | (12) |
| ± 10 | (13) |
| ± 15 | (14) |
| ± 20 | (15) |
| ± 30 | (16) |
| ± 50 | (20) |
Load capacitance
| 50 Ohm | (А) |
| 1 kOhm | (B) |
| 5 kOhm | (V) |
Spurious resonance rejection, dB
| Not rated | (1) |
| -20 | (2) |
| -30 | (3) |
| -40 | (4) |
Impact resistance to external factors action
| Parameter | Value |
| Mechanical impact resistance | М6 Group, GOST 25467 |
| Climatic impact resistance | UKhL 1.1 cat., GOST 25467 |
| Leak-proof construction | |
| γ-percentile time to failure at γ = 95 % under standard operating conditions (at ambient temperature of 85 °С) for min. 25 000 h within 15 years of service life | |
| γ-percentile storageability time – min. 15 years with γ = 95 % |
Notes:
Specifications can be modified to meet Customer’s specific requirements.
Temperature stability
| Operating temperature range, ˚С | Temperature stability , х10-6 | |||||||||
| ± 5 (Zh) | ± 10 (I) | ± 15 (К) | ± 20 (L) | ± 25 (М) | ± 30 (N) | ± 40 (P) | ± 50 (R) | ± 80 (R1) | ||
| 0…+50 (L) | + | + | + | + | + | + | + | + | + | |
| 0…+70 (К) | + | + | + | + | + | + | + | + | + | |
| -10…+50 (М) | - | + | + | + | + | + | + | + | + | |
| -10…+60 (А) | - | + | + | + | + | + | + | + | + | |
| -10…+70 (N) | - | + | + | + | + | + | + | + | + | |
| -30…+60 (Е) | - | - | + | + | + | + | + | + | + | |
| -30…+70 (P) | - | - | + | + | + | + | + | + | + | |
| -30…+85 (R) | - | - | + | + | + | + | + | + | + | |
| -40…+70 (B) | - | - | + | + | + | + | + | + | + | |
| -40…+85 (S) | - | - | - | + | + | + | + | + | + | |
| -60…+85 (G) | - | - | - | - | - | - | + | + | + | |
