PIEZOELECTRIC FILTERS (LITHIUM TANTALITE) FP3P4-777, FP3P4-777-01, FP3P4-777-02, FP3P4-777-03
Piezoelectric filter manufactured as per KPGF.433561.069 TU, «Muza» package
Basic parameters
Number and pin assignment

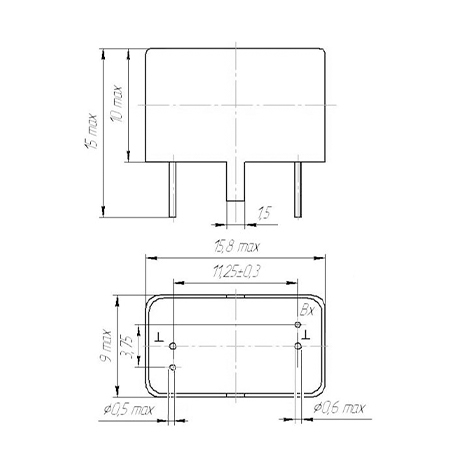

Overrall dimensions
Appearance
.jpg)
Model identification code: FP3P4-777-D-50М-450
KPGF.433561.069 TU
| Type of filter | FP3P4-777 |
| Operating temperature range | D |
| Nominal frequency, MHz | 50М |
| Nominal pass band width at 3 dB level, kHz | 450 |
Impact resistance
| Parameter | Value |
| Mechanical impact resistance | М6 Group, OST 11 206.810 |
| Climatic impact resistance | UKhL 2.1 GOST 15150 |
| γ-percentile time to failure under standard operating conditions at γ = 95 % for min 20 000 h within 20 years of service life | |
| γ-percentile storageability time – min. 20 years |
Notes:
Filter parameters can be modified to meet Customer’s specific requirements.
Electrical parameter
| Nominal frequency range, kHz | Filter order | Order of mechanical oscillations | Operating temperature range, ˚С | Nominal pass band width at 3 dB level, kHz, |
Pass band ripple, dB, max. | Insertion loss dB, max. | Guaranteed attenuation, min. |
| FP3P4-777 | |||||||
| 25 000 - 60 000 incl. | 10 | 1 | -10…+60 (А) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
0,25 - 0,5 | 1,0 | 6,0 | 100 |
| 60 000 - 160 000 | 1 (reverse mesostructure) | ||||||
| FP3P4-777-01 | |||||||
| 25 000 - 60 000 incl. | 8 | 1 | -10…+60 (А) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
0,25 - 1,0 | 1,0 | 5,5 | 90 |
| 60 000 - 160 000 | 1 (reverse mesostructure) | ||||||
| FP3P4-777-02 | |||||||
| 25 000 - 60 000 incl. | 6 | 1 | -10…+60 (А) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
0,25 - 1,5 | 1,0 | 5,0 | 80 |
| 60 000 - 160 000 | 1 (reverse mesostructure) | ||||||
| FP3P4-777-03 | |||||||
| 25 000 - 60 000 incl. | 4 | 1 | -10…+60 (А) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
0,25 - 2,0 | 1,0 | 4,5 | 60 |
| 60 000 - 160 000 | 1 (reverse mesostructure) | ||||||
