PIEZOELECTRIC FILTERS FP2P6-720-S, FP2P6-720АB-S, FP2P6-720АBV-S
Piezoelectric filter manufactured as per KPGF.433541.042 TU-D2 (МR package)
Basic parameters
Number and pin assignment
Overrall dimensions

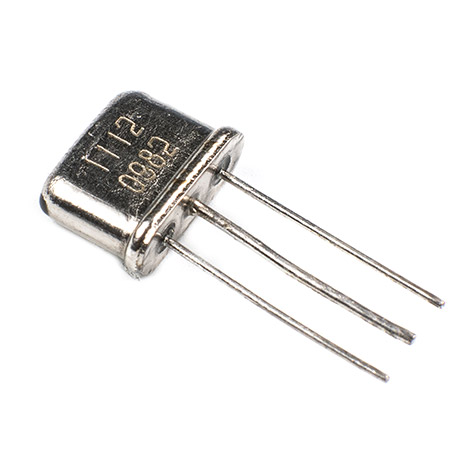

Appearance
Model identification code: FP2P6-720-S-МR-60,24М-100-B KPGF.433541.042 TU-D2
| Type of filter | FP2P6-720-S |
| Package type | МR |
| Nominal frequency, MHz | 60.24М |
| Nominal pass bandwidth at 3 dB level, kHz | 100 |
| Operating temperature range | B |
Impact resistance
| Parameter | Value |
| Mechanical impact resistance | М6 Group, OST 11 206.810 |
| Climatic impact resistance | UKhL 2.1 GOST 25467 |
| Failure rate under normal climatic conditions within runtime of 20 000 h, greater than 10-6 | |
| γ-percentile storageability time – min. 25 years |
Notes:
1. Filter FP2P6-720АB-S consists from two series connected FP2P6-720-S filters, filter FP2P6-720АBV-S – from three series connected FP2P6-720-S filters. 2. Filter parameters can be modified to meet Customer’s specific requirements.
Electrical parameter
| Nominal frequency range, MHz | Filter order | Order of mechanical oscillations | Operating temperature range, ˚С | Nominal pass band width at 3 dB level, kHz, |
Pass band ripple, dB, max. | Insertion loss dB, max. | Guaranteed attenuation, min. |
| FP2P6-720-S | |||||||
| 30 - 90 | 2 | 1 | -10…+60 (A) -25…+55 (R) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
500 - 1200 incl. | 1,0 | 2,0 | 35 |
| 1200 - 1700 incl. | 1,5 | ||||||
| 1700 - 2000 incl. | 2,0 | ||||||
| FP2P6-720AB-S | |||||||
| 30 - 90 | 4 | 1 | -10…+60 (A) -25…+55 (R) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
500 - 1200 incl. | 1,0 | 3,5 | 55 |
| 1200 - 1700 incl. | 1,5 | ||||||
| 1700 - 2000 incl. | 2,0 | ||||||
| FP2P6-720ABV-S | |||||||
| 30 - 90 | 6 | 1 | -10…+60 (A) -25…+55 (R) -30…+60 (B) -40…+70 (V) -60…+85 (D) |
500 - 1200 incl. | 1,0 | 5,0 | 75 |
| 1200 - 1700 incl. | 1,5 | ||||||
| 1700 - 2000 incl. | 2,0 | ||||||
