PIEZOELECTRIC FILTER FP2P6-570АB-S

Piezoelectric filter manufactured as per KPGF.433541.009 TU-D2, МR package

Basic parameters

Nominal frequency range, kHz 60 215;
60 240
LWH, mm 7,2х2,8х5
Type of mounting THT (Through-Hole Technology)
Quality category QCD (Quality Control Dept)

Number and pin assignment

Left pad Output/input
Middle pad Grounding connection
Right pad Input/output

Item added to cart

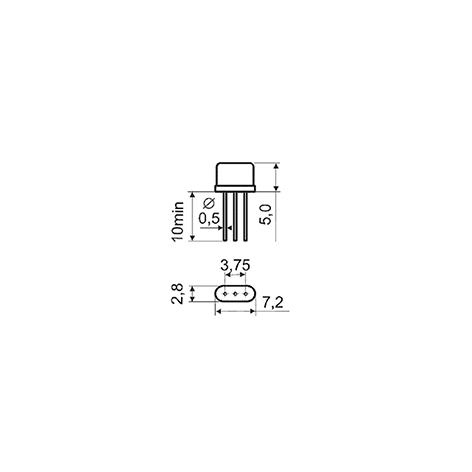

Overrall dimensions

Appearance

Model identification code: FP2P6-570АB-S-60.215М-100 KPGF.433541.009 TU-D2

Type of filter	FP2P6-570АB-S
Nominal frequency, MHz	60,215М
Nominal pass band width at 3 dB level, kHz	100

Impact resistance

Parameter	Value
Mechanical impact resistance	М6 Group, OST 11 206.810
Climatic impact resistance	UKhL 2.1 GOST 25467
Failure rate under normal climatic conditions within runtime of 20 000 h, greater than 5x10^-7
γ-percentile storageability time – min. 25 years

Notes:

1. Filter FP2P6-570АB-S consists from two series connected blocks of filters. 2. Filter parameters can be modified to meet Customer’s specific requirements.

Electrical parameter

Operating temperature range, ˚С	Nominal frequency range, kHz	Filter order	Nominal pass band width at 3 dB level, kHz, х10^-6·fnom	Pass band ripple, dB, max.	Insertion loss dB, max.	Guaranteed attenuation, min.
-60…+85	60 215	4	100	1,5	3,5	55
	60 240
