PIEZOELECTRIC FILTERS FP2P6-570-MM, FP2P6-570АB-MM, FP2P6-570АBV-MM

Piezoelectric filter manufactured as per KZhDG.433541.009 TU (МM package)

Basic parameters

Nominal frequency range, MHz 20 - 90
LWH, mm 7,2х2,8х7
Type of mounting THT (Through-Hole Technology)
Quality category QCD (Quality Control Dept)

Number and pin assignment

Left pad Output/input
Middle pad Grounding connection
Right pad Input/output

Item added to cart

Overrall dimensions

Appearance

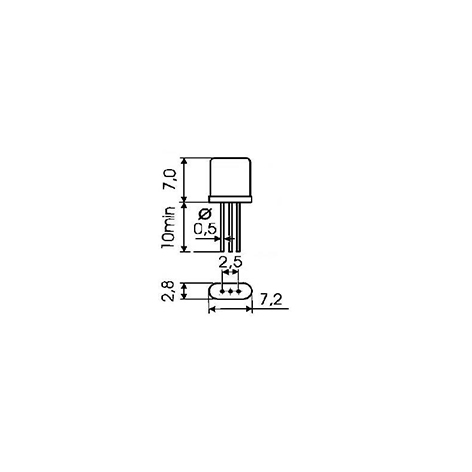

FP2P6-570-MM, FP2P6-570АB-MM, FP2P6-570АBV-MM - Dimensions

FP2P6-570-MM, FP2P6-570АB-MM, FP2P6-570АBV-MM

Model identification code: FP2P6-570-МM-36М-15-1R KZhDG.433541.009 TU

Type of filter	FP2P6-570
Package type	MM
Nominal frequency, MHz	36М
Nominal pass band width at 3 dB level, kHz	15
Order of mechanical oscillations	1
Operating temperature range	R

Impact resistance

Parameter	Value
Mechanical impact resistance	М6 Group, OST 11 206.810
Climatic impact resistance	UKhL 2.1 GOST 25467
Failure rate under normal climatic conditions within runtime of 20 000 h, greater than 5x10^-7
γ-percentile storageability time – min. 25 years.

Notes:

1. Filter FP2P6-570АB consists from two series connected FP2P6-570 filters, filter FP2P6-570АBV – from three series connected FP2P6-570 filters. 2. Filter parameters can be modified to meet Customer’s specific requirements.

Electrical parameter

Nominal frequency range, MHz	Filter order	Order of mechanical oscillations	Operating temperature range, ˚С	Nominal pass bandwidth at 3 dB level, kHz, х10^-6·fnom	Pass band ripple, dB, max.	Insertion loss dB, max.	Guaranteed attenuation, min.
FP2P6-570
20 - 45	2	1	-10…+60 (A) -25…+55 (R) -60…+85 (D)	200 - 500 incl.	1,0	2,5	35
				500 - 750 incl.	1,3	1,5
				750 - 1100 incl.	1,5
				1100 - 1800 incl.	1,3
				1800 - 3000 incl.	1,5
				3000 - 3500 incl.	2,0
				3500 - 5700 incl.	2,5
30 - 90		3		100 - 200 incl.	1,0	3,5
				200 - 600 incl.	1,5	2,5
				600 - 800 incl.	2,0
FP2P6-570АB
20 - 45	4	1	-10…+60 (А) -25…+55 (R) -60…+85 (D)	200 - 500 incl.	1,0	4,5	55
				500 - 750 incl.	1,3	3,5
				750 - 1100 incl.	1,5
				1100 - 1800 incl.	1,5
				1800 - 3000 incl.	2,0
				3000 - 3500 incl.	2,3
30 - 90		3		100 - 200 incl.	1,0	8,0
				200 - 600 incl.	1,5	6,0
				600 - 800 incl.	2,0
FP2P6-570АBV
20 - 45	6	1	-10…+60 (A) -25…+55 (R) -60…+85 (D)	200 - 500 incl.	1,0	7,0	75
				500 - 750 incl.	1,3	5,5
				750 - 1100 incl.	1,5
				1100 - 1800 incl.	1,5
				1800 - 3000 incl.	2,0
				3000 - 3500 incl.	2,3
30 - 90		3		100 - 200 incl.	1,0	11,5
				200 - 600 incl.	1,5	8,5
				600 - 800 incl.	2,0
