PIEZOELECTRIC FILTER FP2P4-568
Piezoelectric filter manufactured as per KPGF.433541.008 TU, «Posol» glass-metal package
Basic parameters
Number and pin assignment

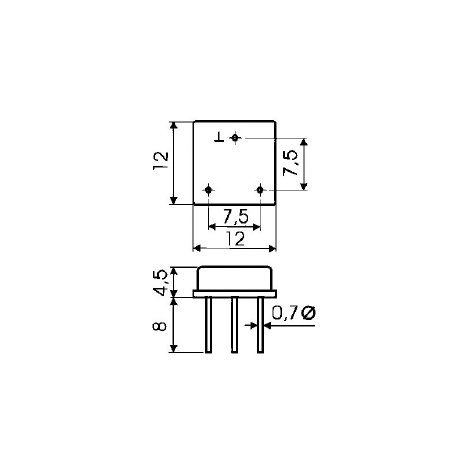

Overrall dimensions
Appearance
Model identification code: FP2P4-568-62,5М-18 KPGF.433541.008 TU
| Type of filter | FP2P4-568 |
| Nominal frequency, MHz | 62.5М |
| Nominal pass band width at 3 dB level, kHz | 18 |
Impact resistance
| Parameter | Value |
| Mechanical impact resistance | М6 Group, OST 11 206.810 |
| Climatic impact resistance | UKhL 2.1 GOST 25467 |
| Failure rate under normal climatic conditions within runtime of 30 000 h, greater than 5x10-7 | |
| γ-percentile storageability time – min. 20 years |
Notes:
Filter parameters can be modified to meet Customer’s specific requirements.
Electrical parameter
| Operating temperature range, ˚С | Nominal frequency range, MHz | Filter order | Nominal pass band width at 3 dB level, kHz | Pass band ripple, dB, max. | Insertion loss dB, max. | Guaranteed attenuation, min. |
| -60…+85 | 39 - 80 | 4 | 7,5; 9,0; 12,0; 15,0; 18,0; 22,0; 24,0; 27 | 2,0 | 6,0 | 60 |
Piezoelectric filter
