PIEZOELECTRIC FILTERS FP2P4-564, FP2P4-564-01
Piezoelectric filter manufactured as per KZhDG.433541.006 TU («Terek» glass-metal packages)
Basic parameters
Number and pin assignment

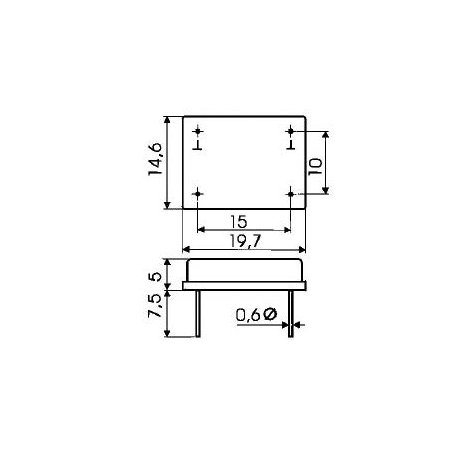

Overrall dimensions
Appearance
Model identification code: FP2P4-564-А-20М-15 KZHDG.433541.006 TU
| Type of filter | FP2P4-564 |
| Operating temperature range | А |
| Nominal frequency, MHz | 20М |
| Nominal pass band width at 3 dB level, kHz | 15 |
Impact resistance
| Parameter | Value |
| Стойкость фильтров к воздействию механических факторов | соответствует группе М4 ОСТ 11 206.810 |
| Стойкость фильтров к воздействию климатических факторов | соответствует категории УХЛ 2.1 ГОСТ 25467 |
| Failure rate under normal climatic conditions within runtime of 15 000 h, greater than 10-6 | |
| v-percentile storageability time – min. 25 years. |
Notes:
Filter parameters can be modified to meet Customer’s specific requirements.
Electrical parameter
| Operating temperature range, ˚С | Nominal frequency range, MHz | Filter order | Nominal pass band width at 3 dB level, kHz, |
Pass band ripple, dB, max. | Insertion loss dB, max. | Guaranteed attenuation, min. | Package type, dimensions in mm |
| FP2P4-564 | |||||||
| -10…+60 (A) -40…+70 (V) -60…+85 (D) |
15 - 27 | 8 | 200 - 500 incl. | 1,0 | 5,0 | 90 | Terek (19,7х14,6х5) |
| 500 - 750 incl. | 1,3 | 4,0 | |||||
| 750 - 1100 incl. | 1,5 | 4,0 | |||||
| 1100 - 1800 incl. | 1,5 | 4,0 | |||||
| 1800 - 3000 incl. | 2,0 | 4,0 | |||||
| 3000 - 3500 incl. | 2,3 | 4,0 | |||||
| FP2P4-564-01 | |||||||
| -10…+60 (A) -40…+70 (V) -60…+85 (D) |
15 - 27 | 6 | 200 - 500 incl. | 1,0 | 4,0 | 75 | Terek (19,7х14,6х5) |
| 500 - 750 incl. | 1,3 | 3,0 | |||||
| 750 - 1100 incl. | 1,5 | 3,0 | |||||
| 1100 - 1800 incl. | 1,5 | 3,0 | |||||
| 1800 - 3000 incl. | 2,0 | 3,0 | |||||
| 3000 - 3500 incl. | 2,3 | 3,0 | |||||
Piezoelectric filter
