PIEZOELECTRIC FILTERS FP2P4-557-01, FP2P4-557-03, FP2P4-557-05
Piezoelectric filter manufactured as per KZhDG.433541.007 TU, «Muza» metal package
Basic parameters
Number and pin assignment

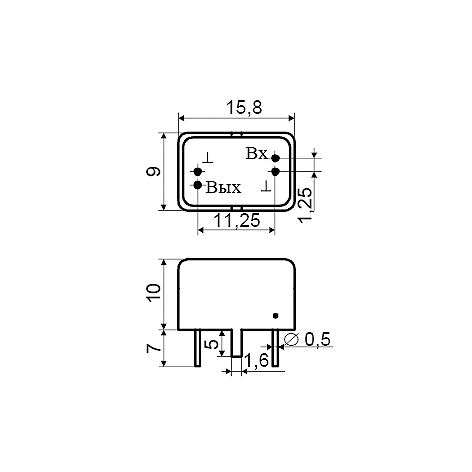

Overrall dimensions

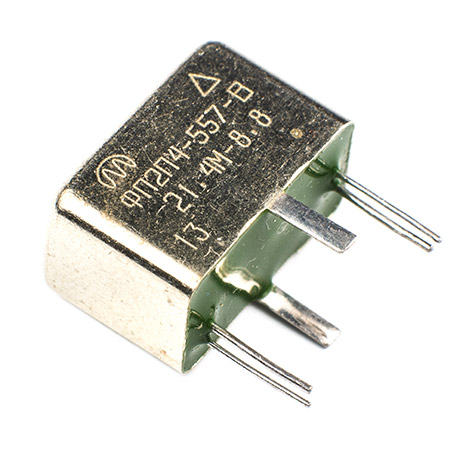

Appearance
Model identification code: FP2P4-557-01-А-20М-15 KZHDG.433541.007 TU
| Type of filter | FP2P4-557-01 |
| Operating temperature range | А |
| Nominal frequency, MHz | 20М |
| Nominal pass band width at 3 dB level, kHz | 15 |
Impact resistance
| Parameter | Value |
| Mechanical impact resistance | М6 Group, OST 11 206.810 |
| Climatic impact resistance | UKhL 2.1 GOST 25467 |
| Failure rate under normal climatic conditions within runtime of 20 000 h, greater than 5х10-7 | |
| γ-percentile storageability time – min. 25 years |
Notes:
Filter parameters can be modified to meet Customer’s specific requirements.
Electrical parameter
| Operating temperature range, ˚С | Nominal frequency range, MHz | Filter order | Nominal pass bandwidth at 3 dB level, kHz, |
Pass band ripple, dB, max. | Insertion loss dB, max. | Guaranteed attenuation, min. |
| FP2P4-557-01 | ||||||
| - 10…+60 (A) - 40…+70 (V) - 60…+85 (D) |
15 - 37 | 10 | 200 - 500 incl. | 1,2 | 5,5 | 95 |
| 500 - 750 incl. | 1,5 | |||||
| 750 - 1100 incl. | 1,7 | |||||
| 1100 - 1800 incl. | 1,7 | |||||
| 1800 - 2300 incl. | 2,0 | |||||
| FP2P4-557-03 | ||||||
| - 10…+60 (A) - 40…+70 (V) - 60…+85 (D) |
15 - 37 | 8 | 200 - 500 incl. | 1,0 | 5,0 | 90 |
| 500 - 750 incl. | 1,3 | |||||
| 750 - 1100 incl. | 1,5 | |||||
| 1100 - 1800 incl. | 1,5 | |||||
| 1800 - 2300 incl. | 2,0 | |||||
| FP2P4-557-05 | ||||||
| - 10…+60 (A) - 40…+70 (V) - 60…+85 (D) |
15 - 37 | 6 | 200 - 500 incl. | 1,0 | 4,5 | 75 |
| 500 - 750 incl. | 1,3 | |||||
| 750 - 1100 incl. | 1,5 | |||||
| 1100 - 1800 incl. | 1,5 | |||||
| 1800 - 2300 incl. | 2,0 | |||||
Piezoelectric filter
